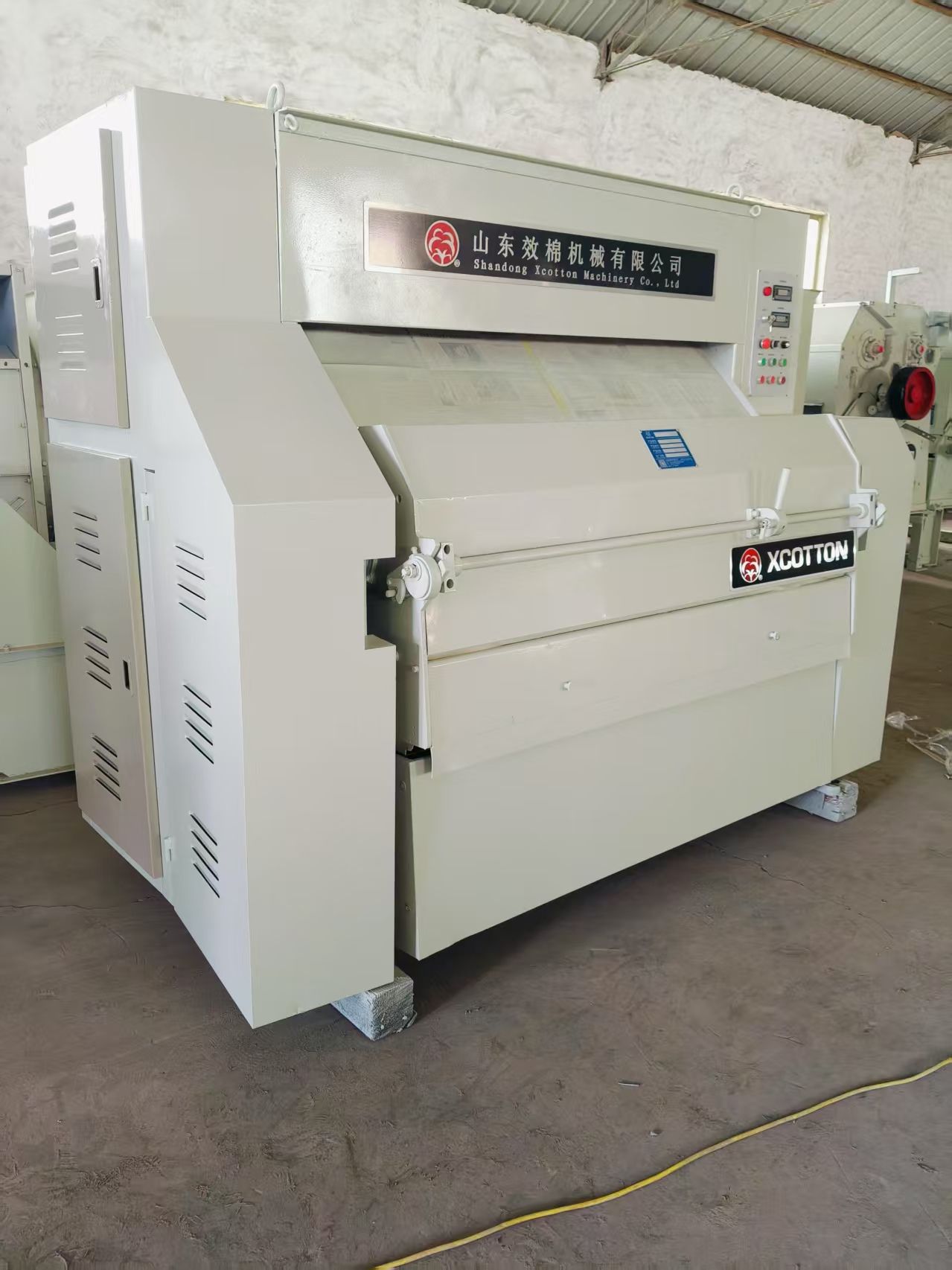

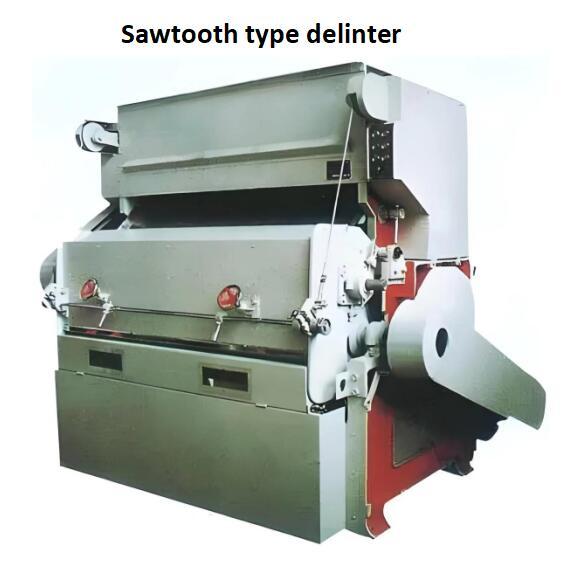

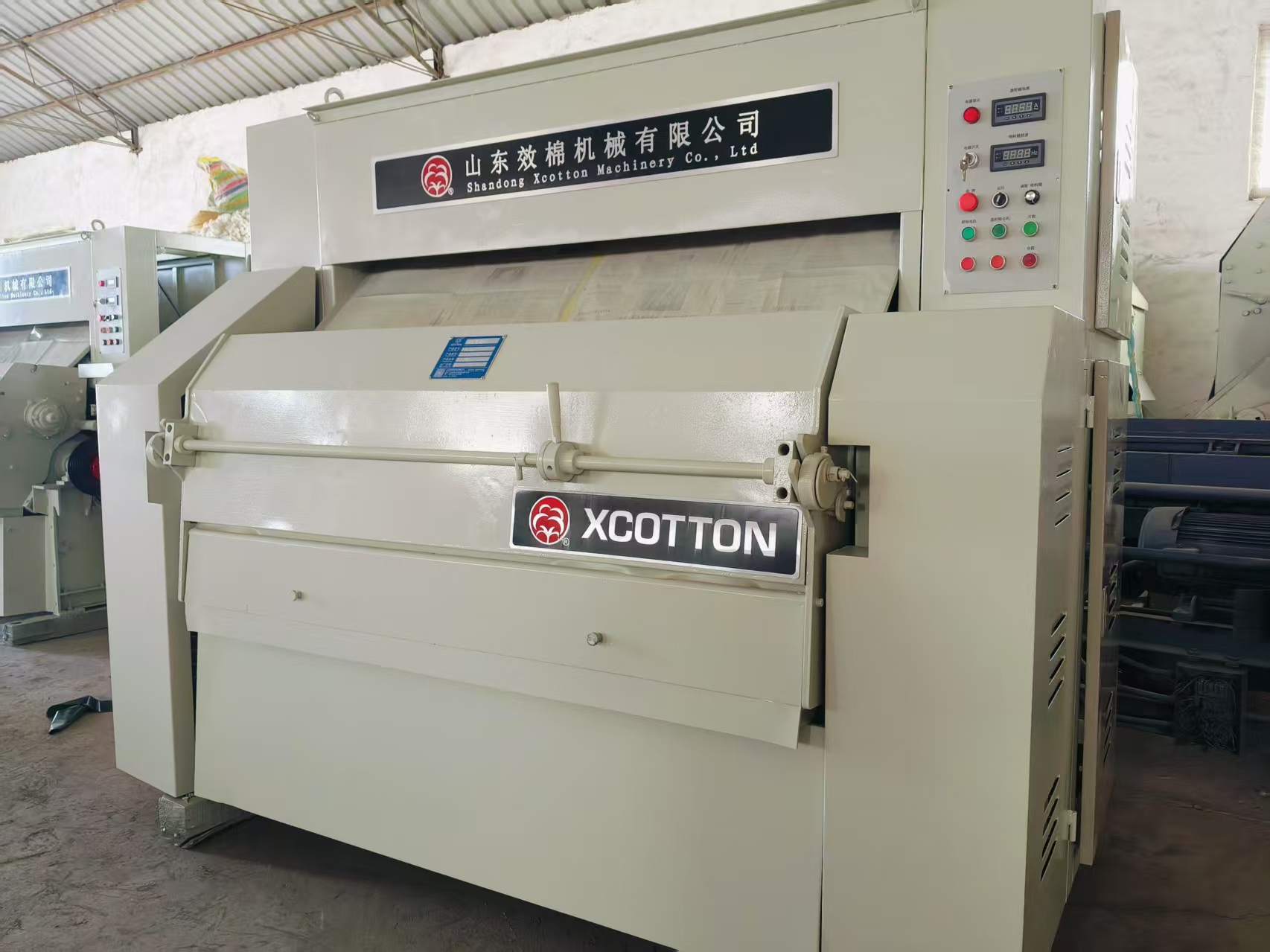

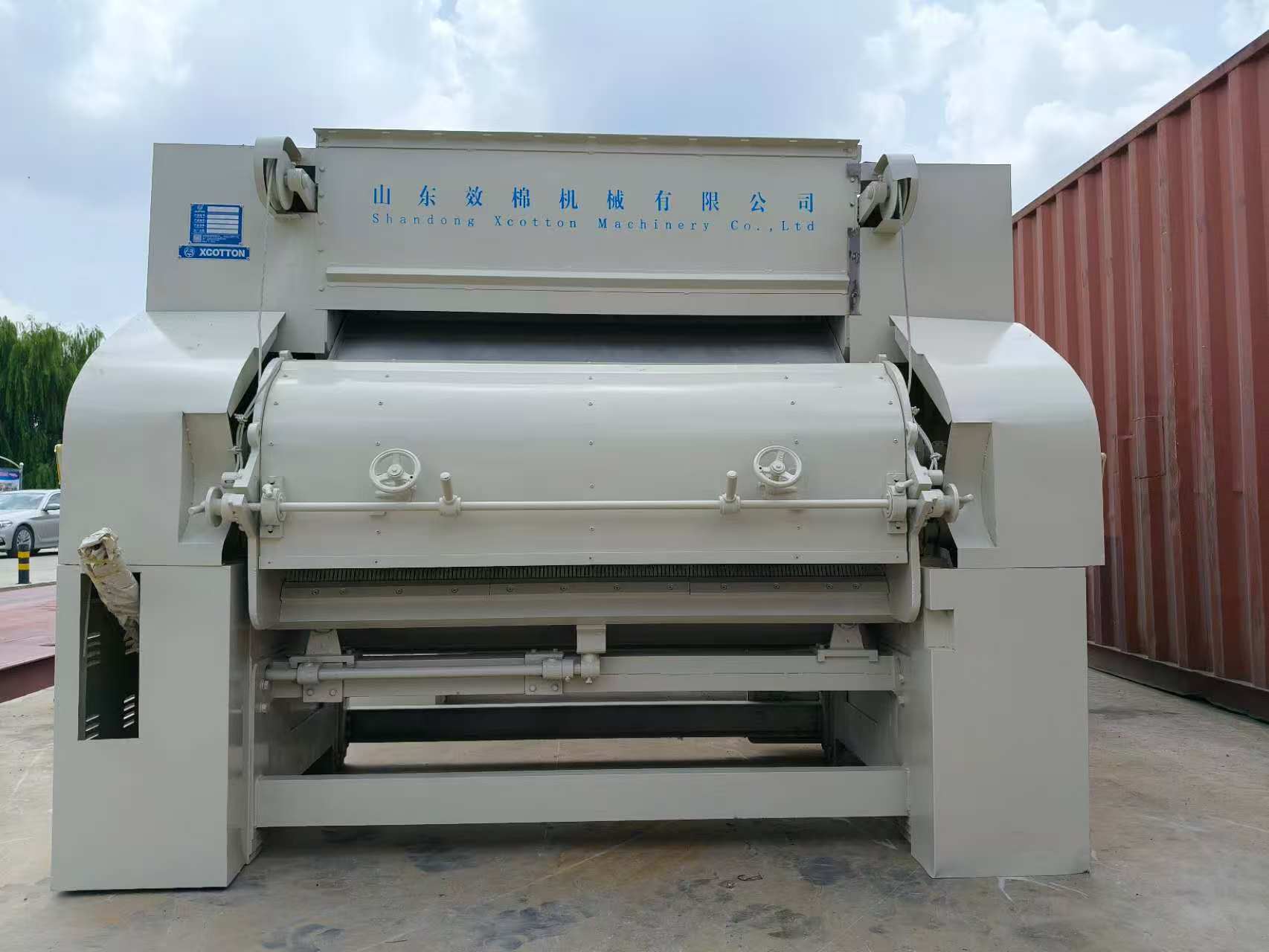

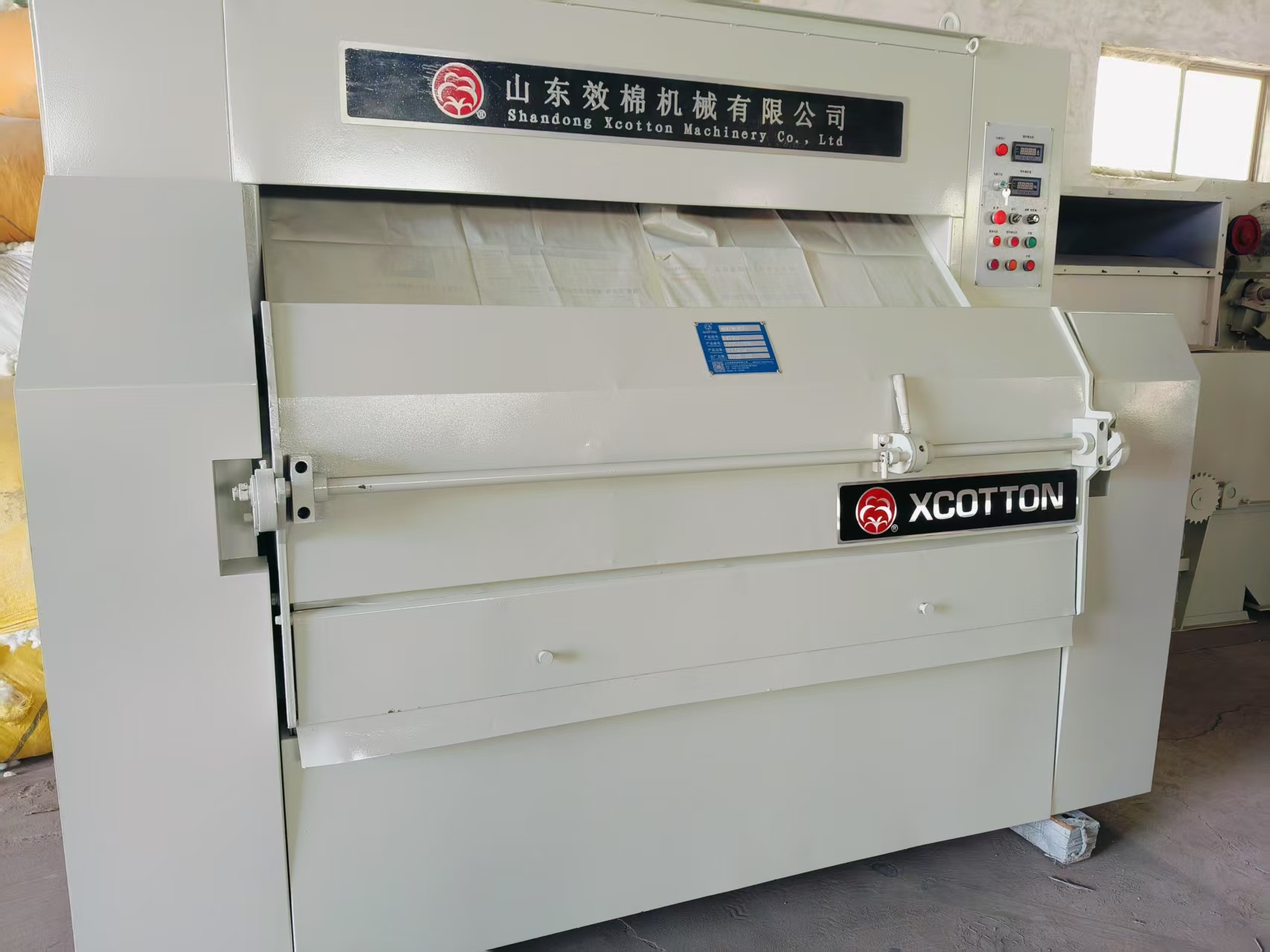

Sawtooth type delinter
Technical features:
1. Seed cotton feeding with intelligent frequency conversion, the delinter is controlled automatically, and the performance is stable and reliable
2. Adopting a large work box design, with high efficiency and low cotton velvet damage, energy saving and low consumption
3. The adjustment device of cotton seed is flexible and reliable and can be adjusted to the ideal loss ratio
4. Adopting hair brush brushing and airflow brushing, customers can choose freely according to the applicable situation
5. The depth of the saw blade and the working pressure angle can both be adjusted to the most suitable state
6. Adopting the quenching technique saw blade, high yield, long service life, and good quality cotton velvet
7. Adopting different matching ratios of machine numbers, can establish cotton seed velvet peeling production lines of various sizes
Technical parameters：
|
Model |
Diameter of saw blade（mm） |
Capacity （KG/H） |
Equipped power（KW） |
Outside dimension（L×W×H） |
Weight （KG） |
|
MR144-11.11 |
≥θ320 |
1000-1400 |
24.35 |
2600×1880×2000mm |
2500 |
|
MR160-10 |
≥θ320 |
1000-1500 |
23.25 |
2450×1665×1980mm |
2200 |
|
MR200-8.88 |
≥θ460 |
1500-2000 |
47.95 |
2600×2200×2400mm |
3550 |
