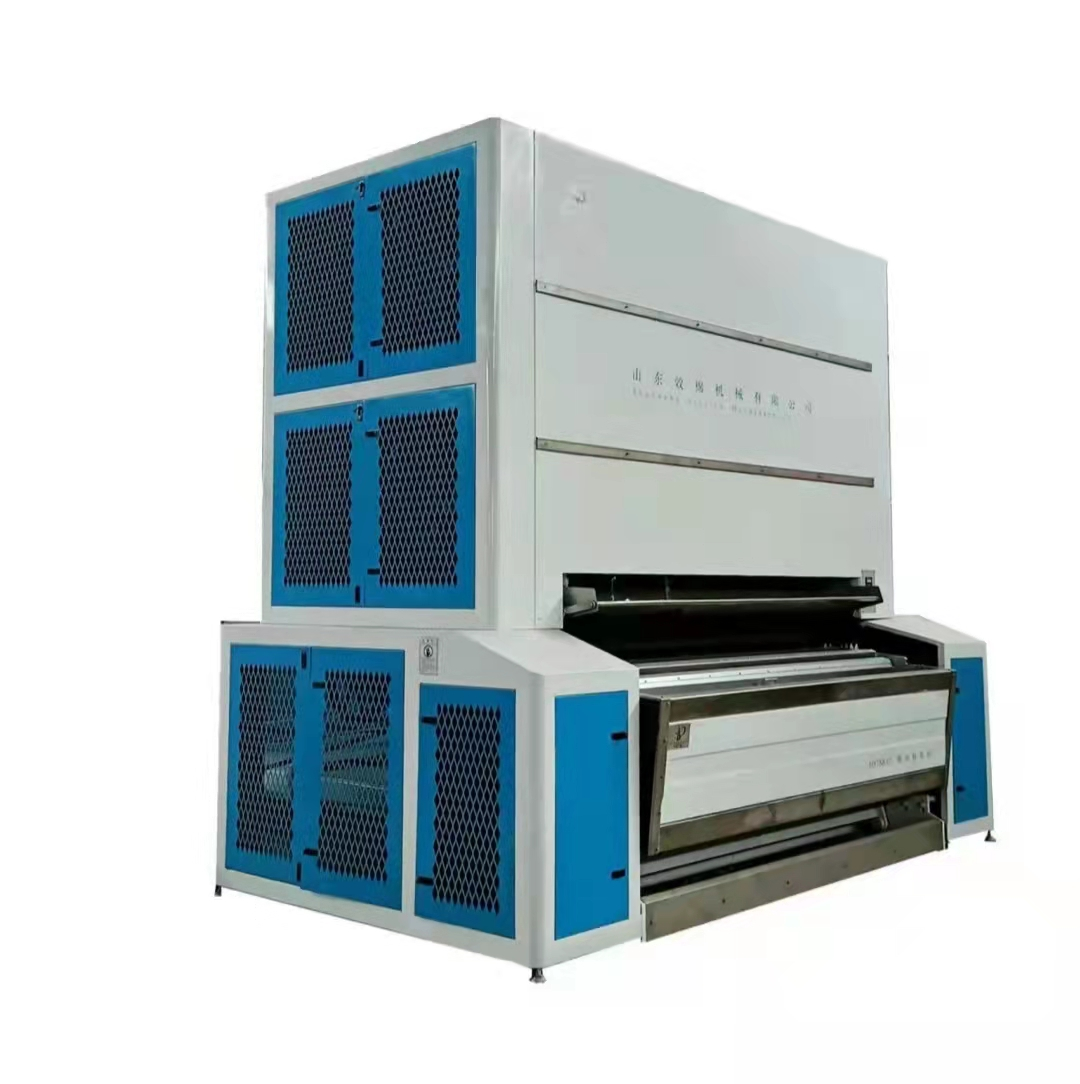

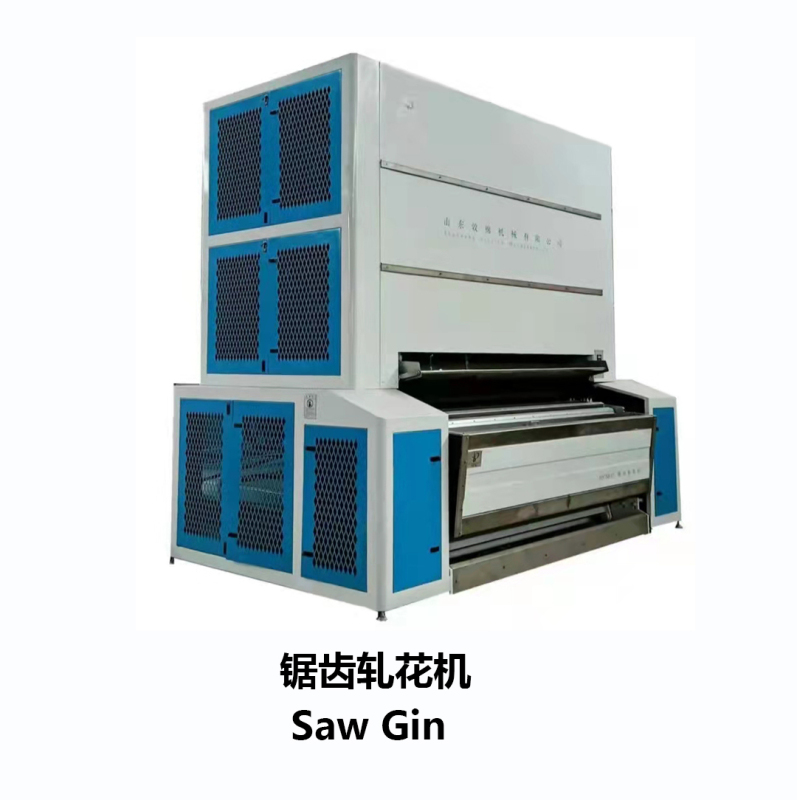

Technical features:
1. The upper cleaning rollers are all made of thick-walled seamless steel pipes, treated with new metal technology, resistant to stones and hard objects, and the rollers are not deformed;
2. The U-shaped barbed bar is made of special materials, which are not easy to be damaged, are durable for a long time, and have a good cleaning effect;
3. The barbed roller is designed with a large diameter, which improves the impurity removal area and efficiency, reduces the rotation speed, does not damage the fibers, and the machine more stable;
4. The upper structure is designed and installed with a vacuum device to ensure that there is no dust in front of the cotton dripping board and to improve the working environment;
5. The parameter design of the new concept work box is conducive to the rapid operation of the cotton lap, and the cotton seed hair head rate can be adjusted;
6. Using the unique middle-box seed row technology, high yield, and low energy consumption, it can normally adapt to the processing of seed cotton with high moisture;
7. Adopt imported blind saw blade, high output, long service life, and good quality processed lint;
8. The front box is designed with a fire prevention mechanism, which can quickly process the burning seed cotton without stopping during production, saving manpower, material resources, and financial resources.
technical parameter:

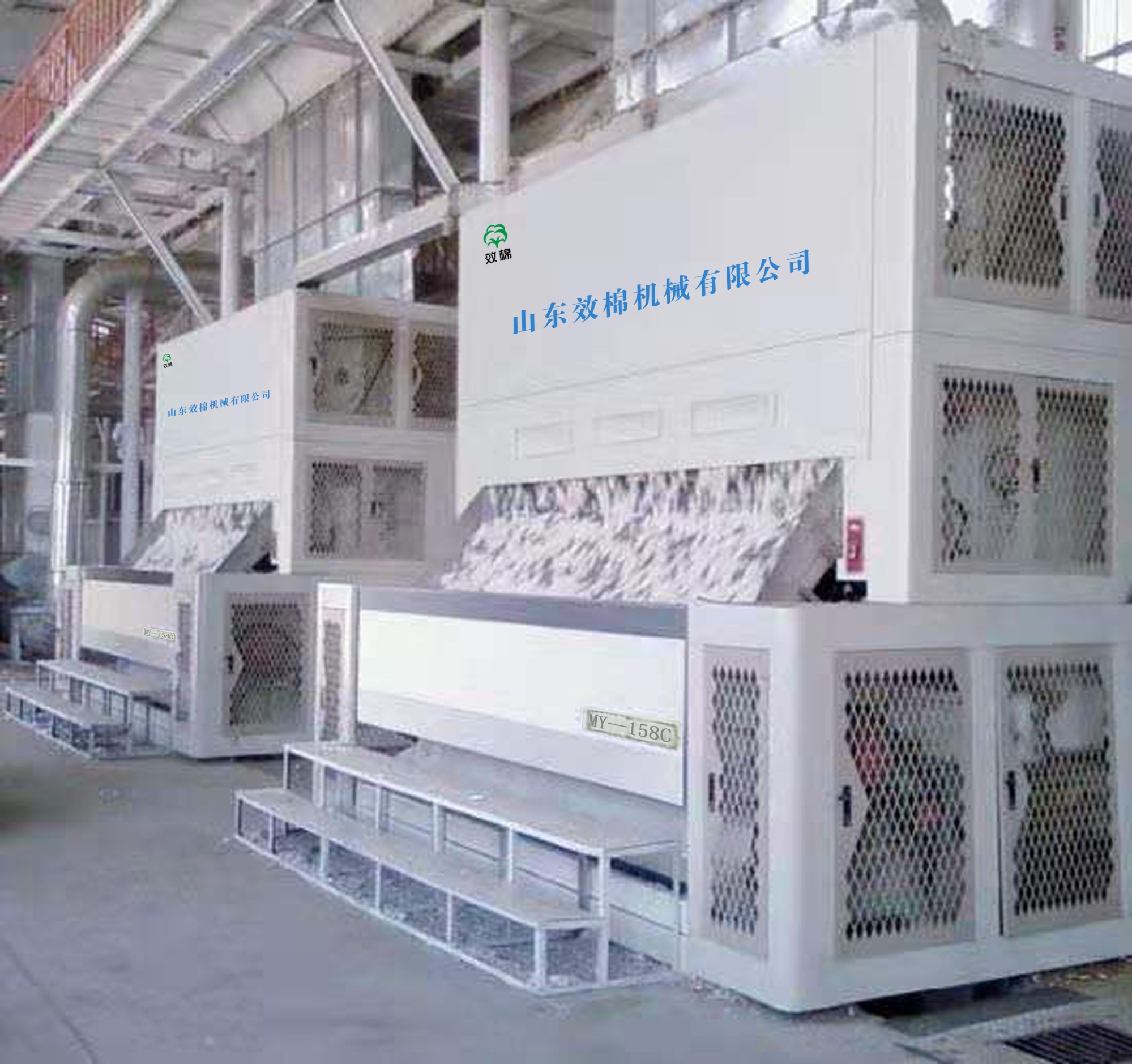

Model MY158C-17
Taiwan-hour output 1200-1800kg/h
Power 64.75KW
The quality of lint ginning reaches or exceeds the national standard for cotton of the same grade
Noise ≤90dB (A)
Number of saw blades 158
Saw blade diameter 406mm
Saw blade pitch 17mm
Brush roller diameter 380mm
Overall dimensions mm (length × width × height) 4160 × 3316 × 3980
Structural mass 9500kg
