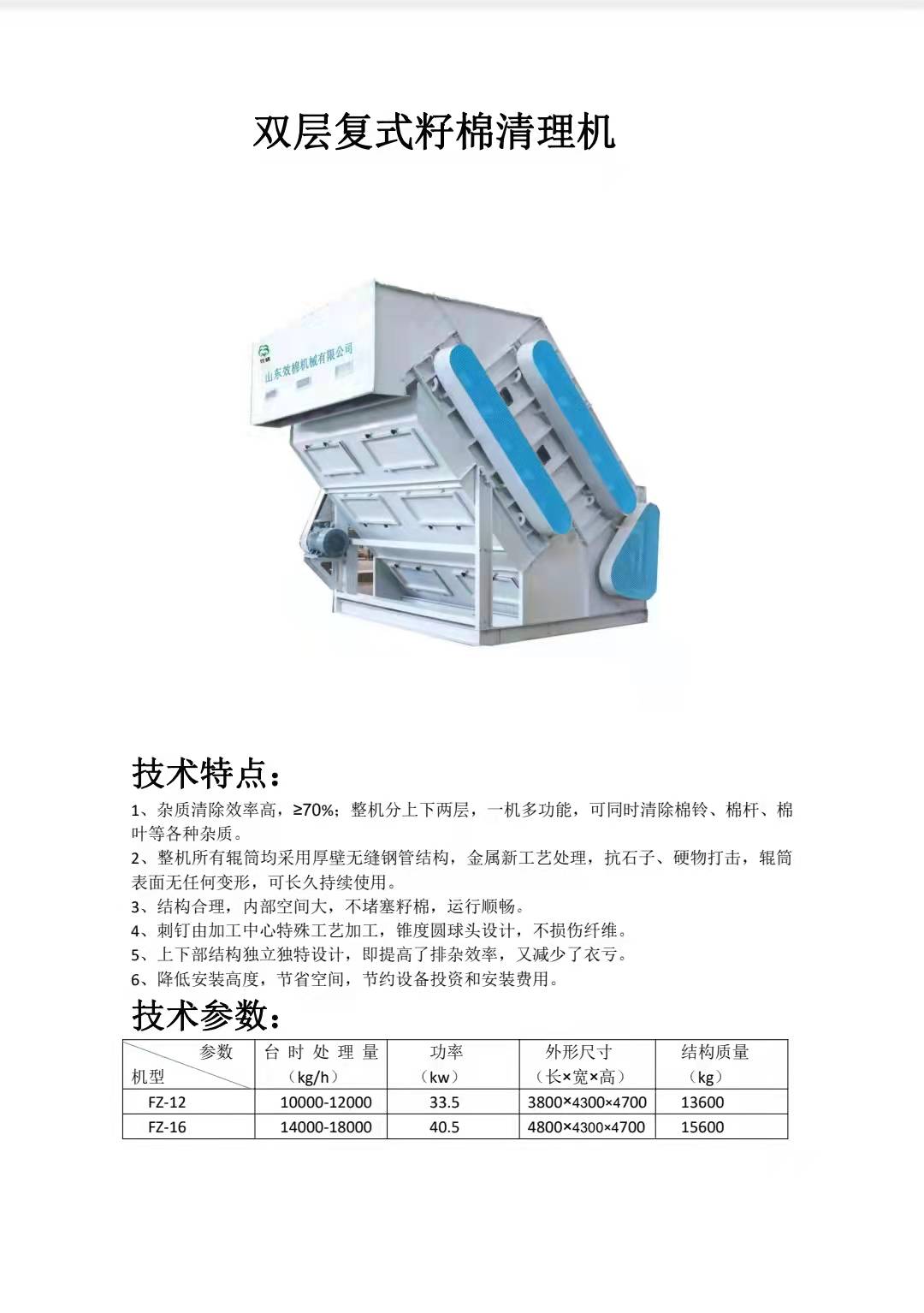

Technical features:
1. High impurity removal efficiency, ≥70%; the whole machine is divided into upper and lower layers, and one machine is multi-functional, which can simultaneously remove various impurities such as cotton bolls, cotton stalks, and cotton leaves.
2. All the rollers of the whole machine are made of thick-walled seamless steel pipe structure, treated with new metal technology, resistant to stones and hard objects, and the surface of the rollers has no deformation and can be used for a long time.
3. The structure is reasonable, the internal space is large, the seed cotton is not blocked, and the operation is smooth.
4. The thorns are processed by the special process of the machining center, and the tapered ball head is designed to not damage the fibers.
5. The upper and lower structures are independently and uniquely designed, which not only improves the efficiency of impurity removal, but also reduces the loss of clothing.
6. Reduce the installation height, save space, save equipment investment and installation costs.
technical parameter:
|
model |
Processing volume per hour（kg/h） |
power（kw） |
Dimensions (L×W×H) |
structural quality（kg） |
|
FZ-12 |
10000-12000 |
33.5 |
3800×4300×4700 |
13600 |
|
FZ-16 |
14000-18000 |
40.5 |
4800×4300×4700 |
15600 |
