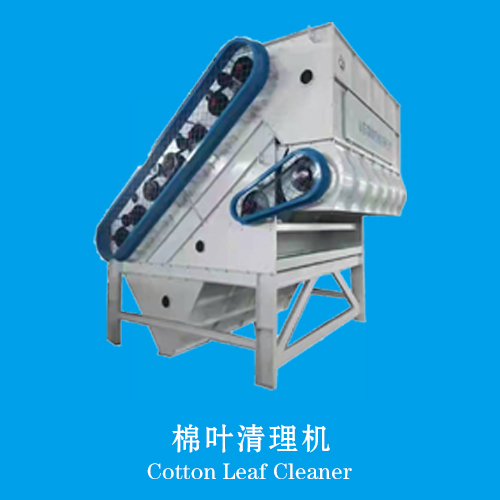

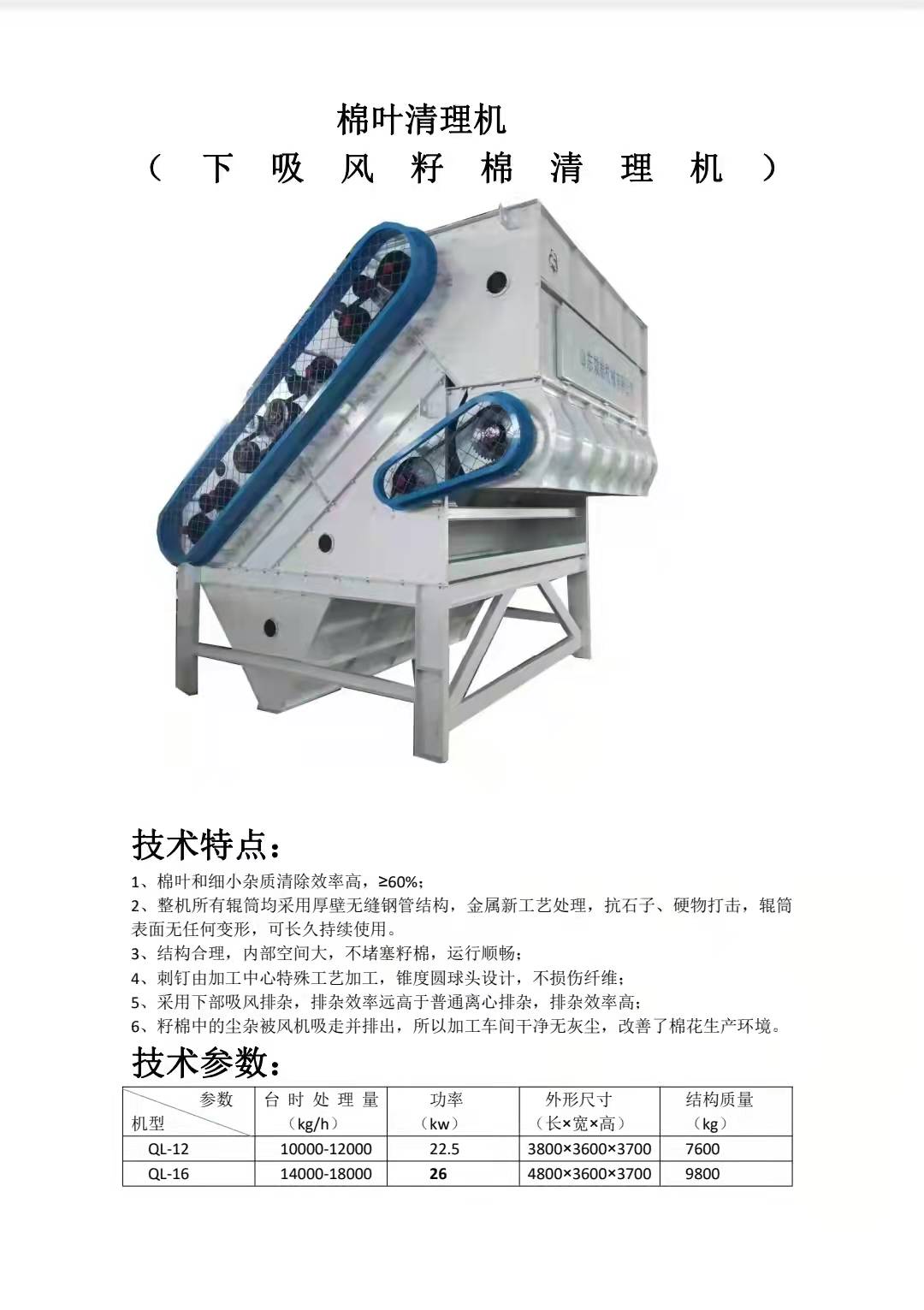

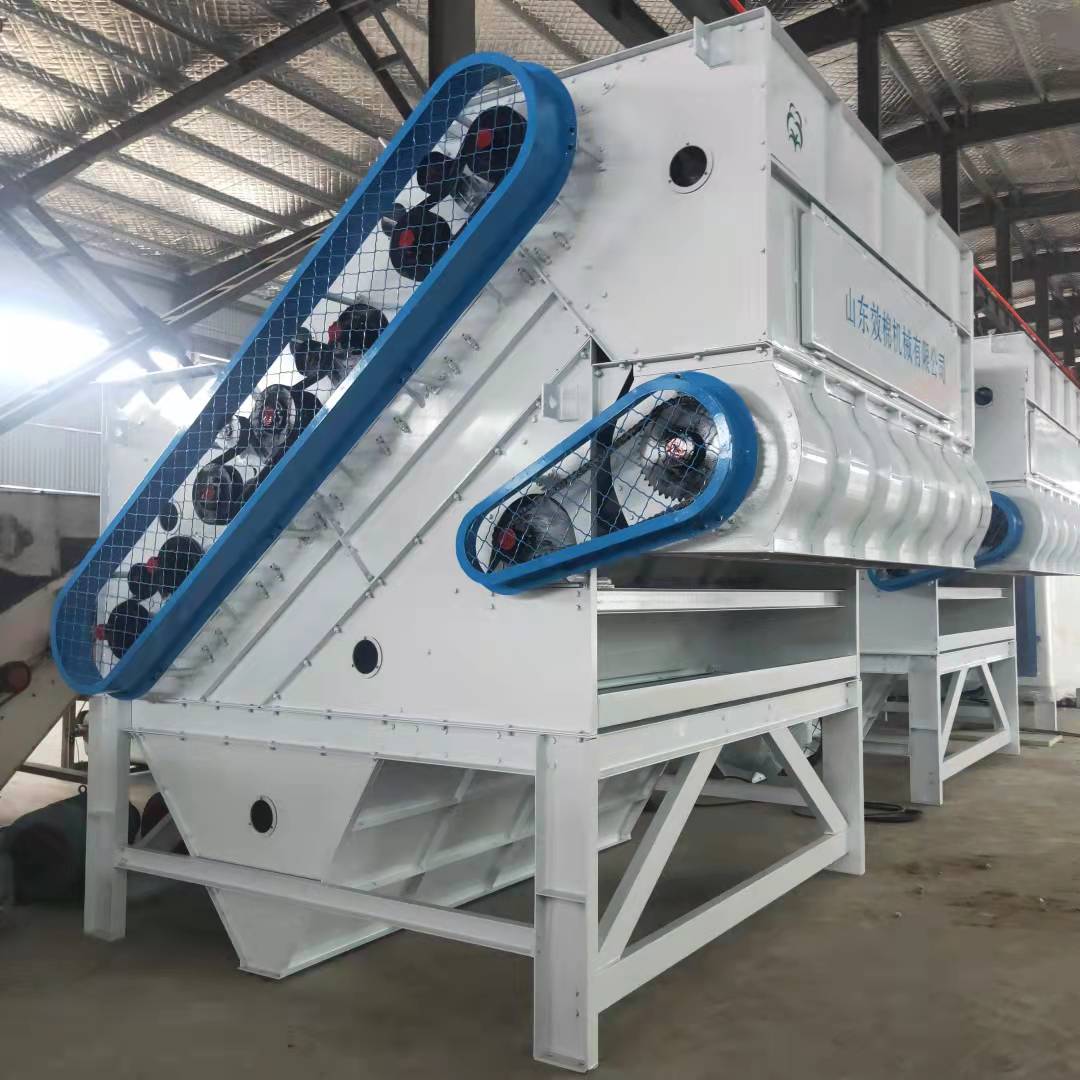

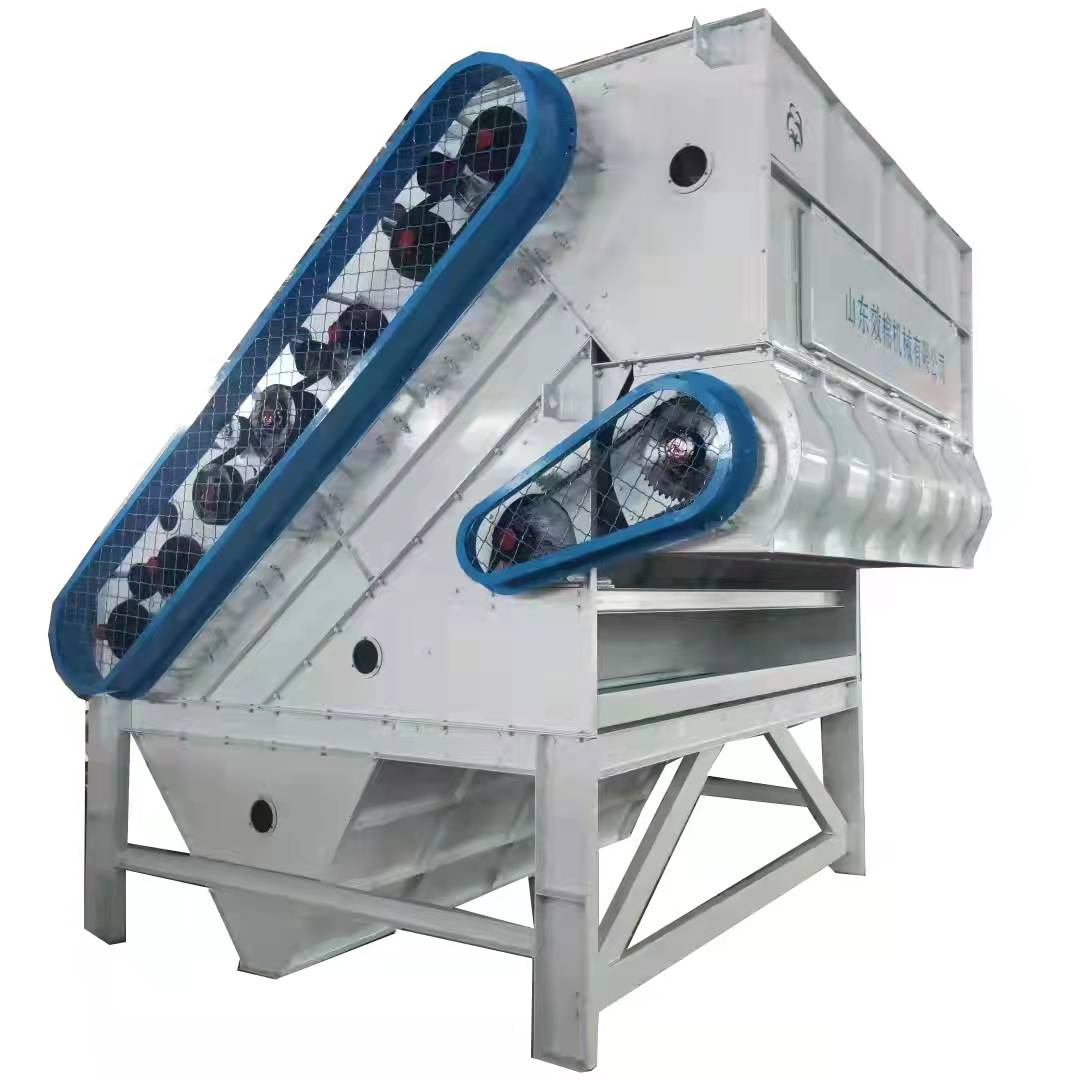

Technical features:
1. The removal efficiency of cotton leaves and small impurities is high, ≥60%;
2. All the rollers of the whole machine are made of thick-walled seamless steel pipe structure, treated with new metal technology, resistant to stones and hard objects, and the surface of the rollers has no deformation and can be used for a long time.
3. The structure is reasonable, the internal space is large, the seed cotton is not blocked, and the operation is smooth;
4. The thorns are processed by the special process of the machining center, and the taper ball head is designed to not damage the fibers;
5. The lower part is used for air suction and impurity removal, and the impurity removal efficiency is much higher than that of ordinary centrifugal impurity removal, and the impurity removal efficiency is high;
6. The dust in the seed cotton is sucked and discharged by the fan, so the processing workshop is clean and dust-free, which improves the cotton production environment.
|
model |
Processing volume per hour(kg/h) |
power(kw) |
Dimensions (L×W×H) |
structural quality(kg) |
|
QL-12 |
10000-12000 |
22.5 |
3800×3600×3700 |
7600 |
|
QL-16 |
14000-18000 |
26 |
4800×3600×3700 |
9800 |
